Most flooring complaints that show up months after installation are not about the flooring at all. They are about what was underneath it. A subfloor that is out of level, still damp, or fastened loosely is a very common reason new floors buckle, squeak, gap, or wear unevenly, no matter how good the plank, tile, or carpet on top happens to be.
The good news: subfloor prep is not mysterious. It comes down to four checks, done in the right order, before a single box of flooring gets opened. Here is the general picture of what actually matters and why, not just "make sure it's flat." Treat the numbers below as a starting point for the conversation with your installer or the product's own instructions, not a replacement for them.
Why Do So Many Flooring Problems Actually Start With the Subfloor?
Because the subfloor is the foundation every finished floor has to trust. A plank, tile, or carpet installed over a subfloor that is uneven, wet, or poorly fastened is being asked to perform on top of a problem it did not create and cannot fix on its own.
Skipped or rushed subfloor prep is behind most of the classic complaints: gaps opening between planks, a floating floor that clicks and pops underfoot, tile that cracks along a seam, glue-down flooring that bubbles or lifts, or carpet that wrinkles within a year. In almost every one of those cases, the flooring itself was fine. The surface it went down on was not ready.
The trade-off is time, and sometimes a bit of extra cost, before the fun part starts. A flat, dry, properly fastened subfloor takes an afternoon or two of testing and correction. A flooring failure traced back to subfloor prep usually means tearing the new floor back up.
How Do You Actually Test a Subfloor for Moisture?
The only reliable way to know is with an actual instrument, not a hand on the concrete or a guess based on how long the slab has been poured. Moisture is invisible until it is not, and by the time it shows up as cupped hardwood or a lifted vinyl seam, the damage is already done.
For concrete subfloors, there are two common tests, and they measure genuinely different things:
- A calcium chloride test measures moisture vapour coming off the surface of the slab. A sealed dish sits on the concrete for 60 to 72 hours, and the weight gain is converted into a moisture vapour emission rate.
- An in-situ relative humidity test uses probes inserted into holes drilled partway into the slab, left to equilibrate for at least 24 hours, then read for internal relative humidity. It measures conditions inside the concrete rather than just at the surface, so the two tests do not produce comparable numbers.
There is no single moisture limit that applies to every vinyl floor, and this is the one number in this whole guide worth treating as a hard rule rather than a ballpark: always use the moisture limit stated by the flooring and adhesive manufacturer for the exact products being installed, not a general figure from anywhere else. Historically, limits such as 75% relative humidity or 3 lbs per 1,000 square feet per 24 hours have been commonly used as rough reference points, but many modern flooring products and adhesives allow different, and sometimes significantly higher, levels. A professional moisture-testing service or your installer can help interpret the results against your specific product.
On a wood subfloor, the test is simpler: a pin-type moisture meter compared against the moisture reading of the flooring itself once it has acclimated in the room. A large enough gap between the two readings is the warning sign, not a single number in isolation.
Is Your Subfloor Flat Enough for the Floor You're Installing?

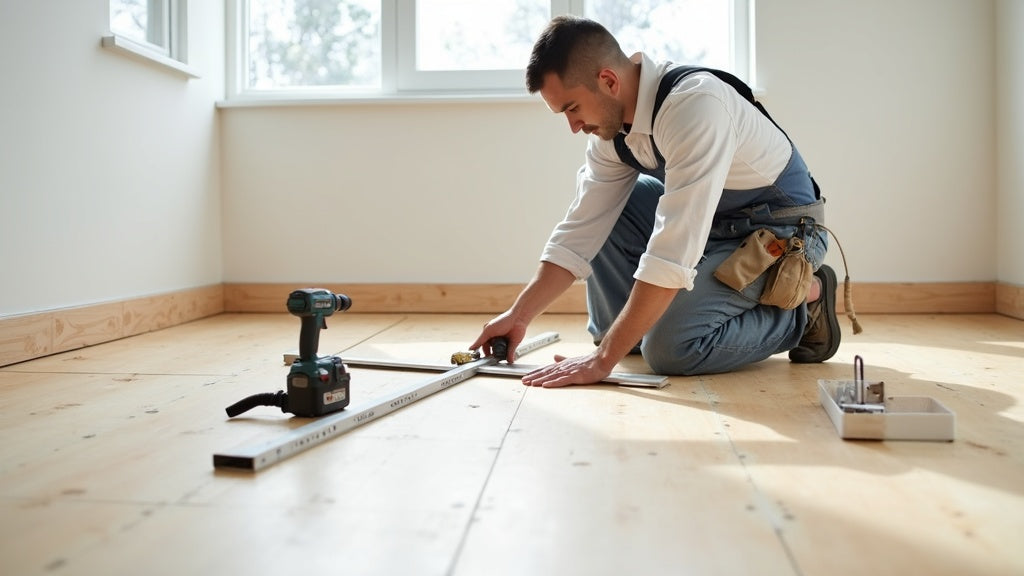

Flat enough isn't just a visual impression, it's something you can actually check with a long straightedge. Many wood and floating-floor installations use a ballpark of roughly 3/16 inch of variation over a 10-foot span, or 1/8 inch over 6 feet, as a general guide. The exact number varies by flooring system and manufacturer, so the installation instructions for your specific product are what actually governs the job, not this guide.
A high spot or dip that exceeds a reasonable tolerance tends to telegraph straight through the finished floor: a rocking plank, a hollow-sounding spot, uneven wear on a rug or high-traffic path. If you're not confident measuring this yourself, a flooring professional can check it quickly.
Tile has its own, stricter concern on top of flatness: how much the subfloor flexes under load. As a rough guide, a 10-foot span generally shouldn't flex more than about a third of an inch. That's specific to rigid tile. Floating vinyl, laminate, and wood floors tolerate a bit more subfloor movement. Ask your installer to confirm the subfloor is solid enough before tile goes down, this is exactly the kind of check worth having a professional eye on.
| Flooring type | General ballpark |
|---|---|
| Vinyl / LVP on concrete | Roughly 3/16 inch over 10 feet |
| Solid or engineered hardwood | Roughly 3/16 inch over 10 feet, or 1/8 inch over 6 feet |
| Laminate and floating floors | Roughly the same as above, unless the manufacturer specifies tighter |
| Tile | Varies by tile size and installation system; large-format tile generally needs a flatter subfloor |
These are general ballparks to help you understand what's being checked. Always confirm the exact number for your specific product before you start.
Flattening vs. Levelling: What's the Difference, and Which Do You Need?
Flattening corrects small bumps and dips. Levelling corrects an overall slope. The two get lumped together constantly, but they call for different fixes, and using the wrong one wastes both time and material.
A subfloor with isolated high spots often just needs sanding or grinding down at those points, plus a patching compound in any low spots. A subfloor that slopes across a whole room, the kind you can see a ball roll on, generally needs a self-levelling underlayment poured across the full area to create one true, even plane. If you're not sure which one your situation calls for, a flooring professional can usually tell within a few minutes on site.
Either way, give the fix time to cure fully before flooring goes down. Rushing this step is one of the more common ways a freshly corrected subfloor still ends up causing problems, because the compound has not finished hardening when the load of a new floor is placed on it.
Does It Matter Whether Your Subfloor Is Plywood or OSB?
Yes, and the difference matters more for some flooring types than others. Plywood's cross-laminated layers grip nails and screws more reliably than OSB's strand construction, which is why most solid hardwood manufacturers specify plywood for nail-down installations. Engineered hardwood, laminate, and vinyl generally perform well over either material, provided the panels are properly fastened and dry.
The real weak point with OSB is moisture at the panel edges. The exposed strand ends at an OSB seam can absorb water quickly and swell permanently, a change that does not reverse once the panel dries out. Plywood tends to dry back closer to its original shape after a wetting. Neither material is wrong to build with, but if a subfloor has a history of water exposure, plywood is the safer bet, and any swollen or delaminated OSB should be replaced rather than covered over.
What Causes Squeaks, and How Do You Stop Them Before You Install?
Squeaks come from movement, almost always a small gap between the subfloor and the joists below it, or between the subfloor panels themselves, that lets the wood rub and flex under weight. Fastening the subfloor properly before flooring goes down is the simplest way to prevent a squeak that is nearly impossible to fix later without pulling the finished floor back up.
Screws driven into every joist, not just some of them, generally hold better over time than nails, which tend to work loose as the wood shrinks and swells with the seasons. Many installers space screws roughly every 6 inches along panel edges and every 12 inches through the middle of each panel, but the subfloor panel manufacturer's own fastening schedule is what should actually guide the job. This is exactly the kind of structural work worth having a professional check if you're not fully confident doing it yourself.
One caveat worth naming honestly: fastening quality only fixes squeaks caused by subfloor movement. If the noise is coming from the joists themselves, an uncrowned or undersized joist bridging a low spot, no amount of screwing down the subfloor panel will fully solve it. That's a structural question, not a subfloor prep one, and it's worth a second opinion before flooring goes down over it.
Frequently Asked Questions
A few questions come up on almost every subfloor prep job, whether it's a DIY weekend project or a full room renovation.
Do I really need to test for moisture if the subfloor looks completely dry?
Yes. A slab or panel can look and feel bone dry on the surface while still reading well above an acceptable relative humidity level internally, especially on newer concrete pours that have not finished curing. A calcium chloride or in-situ probe test is the only reliable way to know, and it costs far less than replacing a floor that failed from trapped moisture.
Do floating floors still need flat, prepped subfloors?
Yes, even though a floating floor is not fastened down. Our guide to how a floating floor actually works covers this in more detail, but the short version is that a floating floor's click-lock joints still need a flat, stable surface underneath to avoid gaps and joint stress over time.
How long does subfloor prep actually add to a project?
Budget at least a full day for testing and any minor corrections, longer if a self-levelling pour or panel replacement is needed, since both require real cure time before flooring can go down safely. It's a smaller time cost than most people expect, and a far smaller one than redoing an install later.
Can I do this myself, or should I hire a professional?
Flatness checks and moisture testing are genuinely DIY-friendly with the right tools. Structural issues like joist deflection, widespread OSB swelling, or a slope that needs a full self-levelling pour are usually worth bringing in a professional for. If you're in Metro Vancouver, Whistler, Victoria, Kelowna, or the surrounding areas, Word of Mouth Floors' installation team can assess and handle subfloor prep as part of a full install.
Getting the subfloor right is the least glamorous part of any flooring project, and the part that decides whether everything after it goes smoothly. Every number in this guide is a general ballpark meant to help you understand what's being checked and why, not a spec to build to. Your flooring's manufacturer instructions and warranty terms are the real authority on your specific job, and a professional is worth the call whenever you're not sure. For a broader look at where installs commonly go wrong beyond the subfloor itself, our common flooring installation mistakes guide and flooring installation checklist are good next stops before you start.
Curious how a floor will actually look once it's down on a properly prepped subfloor? Order a free sample, or contact us and we'll help you think through the prep work for your specific space.
— The Word of Mouth Floors team
